RF2126 RF Power Amplifier 2.4GHZ 1W WIFI Bluetooth Amplifier
Image transfer amplifier with heat sink



　
 Description:
  • Features:


    High frequency RF broadband power amplifier 1W high power 400M-2700M

    Power supply: 6V (500mA  maximum power output)
         Gain: 12DB 2450MHz
         size:

    Length * width * height (70mm * 50mm * 20mm) This size is included in the protruding SMA interface

         Length * width * height (50mm * 50mm * 20mm) does not include SMA interface

         P1dB=30dB-1W 2450MHz (default delivery)
         Working frequency: 400-2700MHz
         Input and output impedance: 50Ω

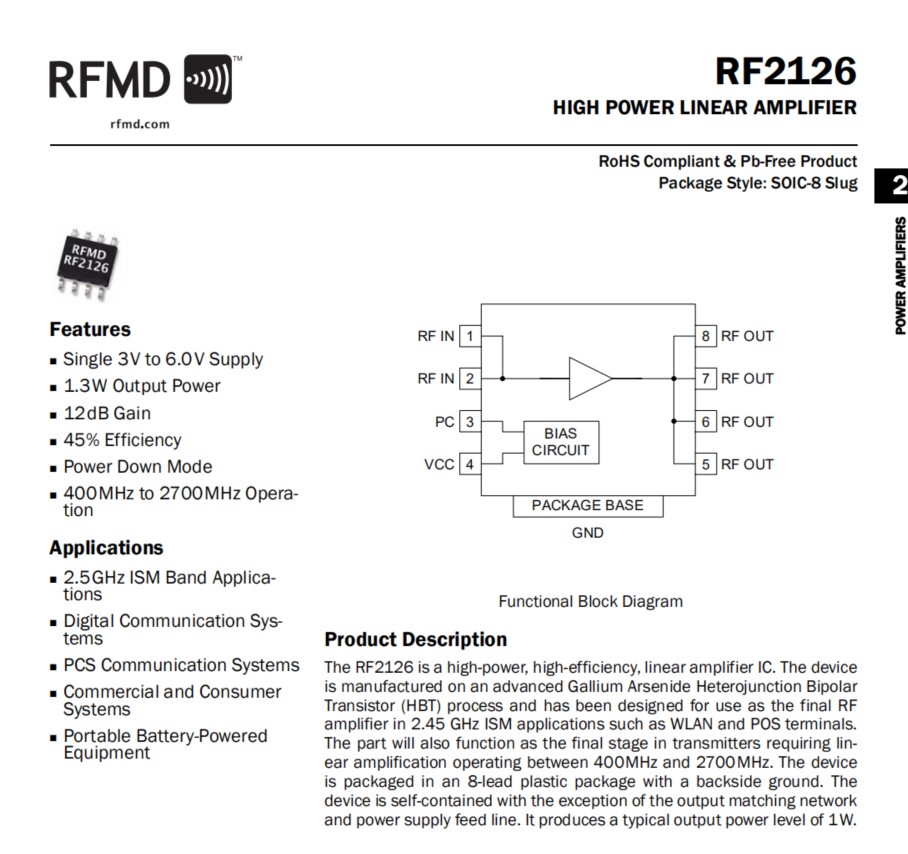

Datenblatt
